第三方数据DURAGO : BR901904

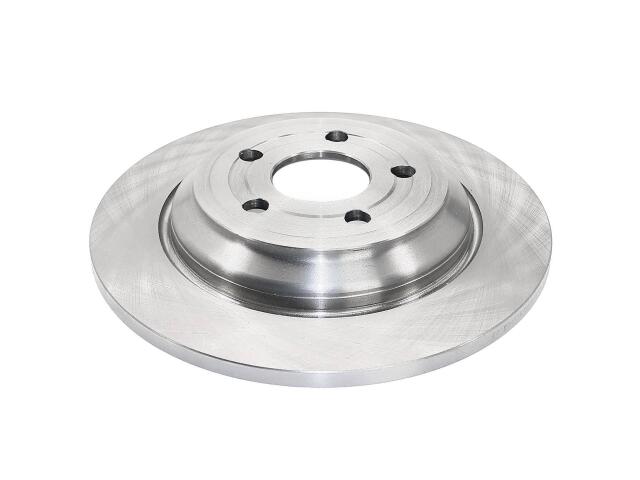

Rotor
DURAGO : BR901904

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.5
Center Hole Diameter (MM): 63.6
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.35
Discard Thickness (MM): 9
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.25
Mounting Bolt Hole Circle Diameter (MM): 108
Mounting Bolt Hole Diameter (IN): 0.62
Mounting Bolt Hole Diameter (MM): 15.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.43
Nominal Thickness (MM): 11
Outside Diameter (IN): 11.89
Outside Diameter (MM): 302
Overall Height (IN): 1.61
Overall Height (MM): 40.9
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

FORD (1)

OE号码

品牌	号码
OE	AX90190*
