DURAGO
BR901898

第三方数据DURAGO : BR901898

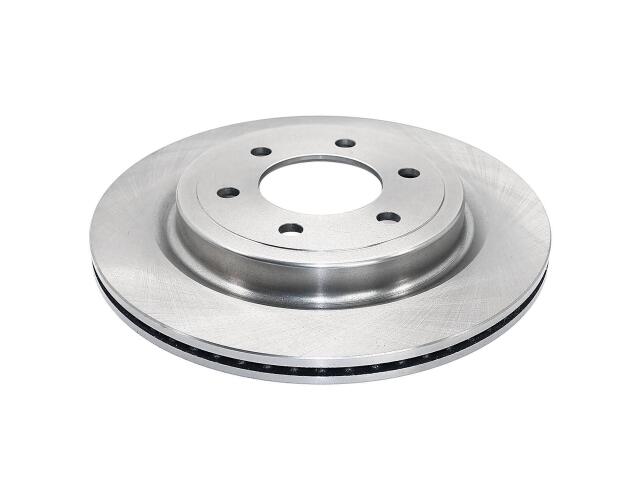

Rotor
DURAGO : BR901898

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.54
Center Hole Diameter (MM): 90
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.73
Discard Thickness (MM): 18.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.31
Mounting Bolt Hole Circle Diameter (MM): 135
Mounting Bolt Hole Diameter (IN): 0.61
Mounting Bolt Hole Diameter (MM): 15.5
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 0.79
Nominal Thickness (MM): 20
Outside Diameter (IN): 13.23
Outside Diameter (MM): 336
Overall Height (IN): 1.66
Overall Height (MM): 42.1
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (3)

F-150 (7)

2.7L V6 Turbocharged (4)

3.0L V6 DIESEL Turbocharged (1)

3.3L V6 (3)

3.5L V6 ELECTRIC/GAS Turbocharged (4)

3.5L V6 Turbocharged (4)

5.0L V8 (4)

5.2L V8 Supercharged (2)

LOBO (3)

EXPEDITION (1)

LINCOLN (1)

OE号码

品牌	号码
OE	AX90189*
