DURAGO
BR901878

第三方数据DURAGO : BR901878

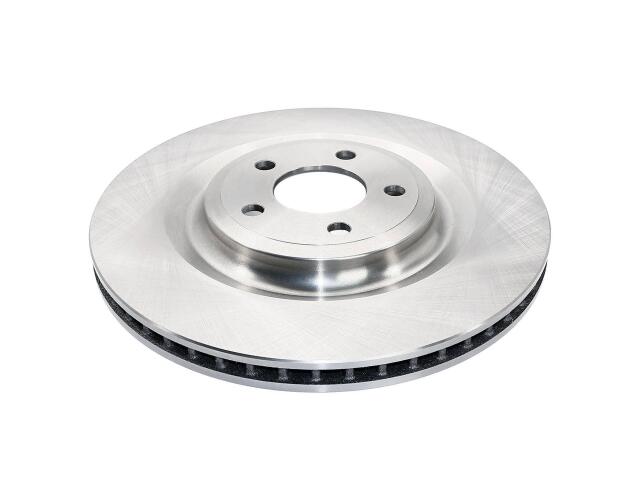

Rotor
DURAGO : BR901878

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.8
Center Hole Diameter (MM): 71.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.96
Discard Thickness (MM): 24.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.62
Mounting Bolt Hole Diameter (MM): 15.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.02
Nominal Thickness (MM): 26
Outside Diameter (IN): 13.78
Outside Diameter (MM): 350
Overall Height (IN): 1.54
Overall Height (MM): 39.2
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (3)

EXPLORER (2)

POLICE INTERCEPTOR UTILITY (3)

MUSTANG (1)

LINCOLN (1)

OE号码

品牌	号码
OE	AX90187*
