DURAGO
BR901874

第三方数据DURAGO : BR901874

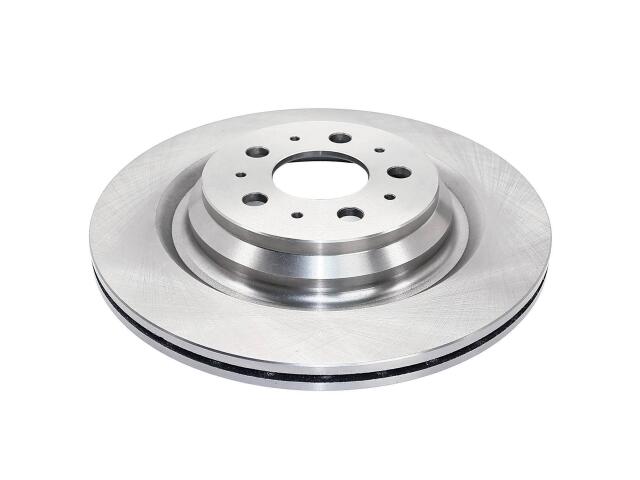

Rotor
DURAGO : BR901874

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.76
Center Hole Diameter (MM): 70
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.71
Discard Thickness (MM): 18
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.66
Mounting Bolt Hole Diameter (MM): 16.7
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.79
Nominal Thickness (MM): 20
Outside Diameter (IN): 13.19
Outside Diameter (MM): 335
Overall Height (IN): 1.87
Overall Height (MM): 47.4
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

TESLA (1)

OE号码

品牌	号码
OE	AX90187*
