DURAGO
BR901868

第三方数据DURAGO : BR901868

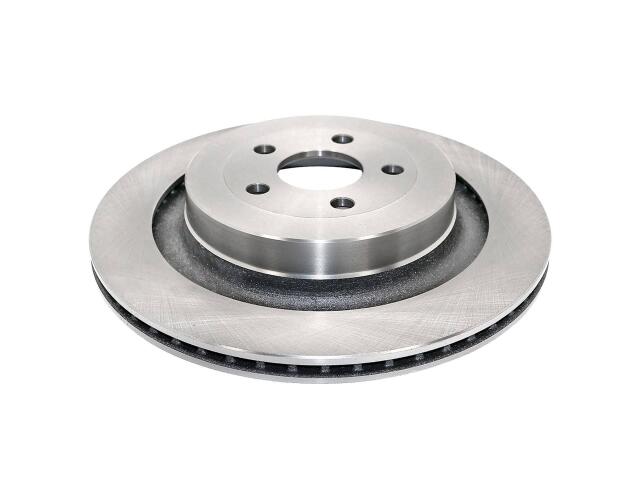

Rotor
DURAGO : BR901868

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.5
Center Hole Diameter (MM): 63.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.67
Discard Thickness (MM): 17
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.25
Mounting Bolt Hole Circle Diameter (MM): 108
Mounting Bolt Hole Diameter (IN): 0.62
Mounting Bolt Hole Diameter (MM): 15.7
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.75
Nominal Thickness (MM): 19
Outside Diameter (IN): 13.58
Outside Diameter (MM): 345
Overall Height (IN): 1.99
Overall Height (MM): 50.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

LINCOLN (1)

OE号码

品牌	号码
OE	AX90186*
