DURAGO
BR901844

第三方数据DURAGO : BR901844

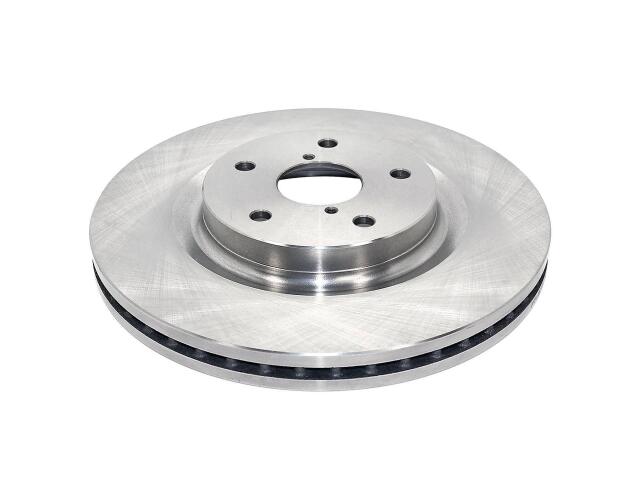

Rotor
DURAGO : BR901844

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.28
Center Hole Diameter (MM): 58
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.02
Discard Thickness (MM): 26
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.51
Mounting Bolt Hole Diameter (MM): 13
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.1
Nominal Thickness (MM): 28
Outside Diameter (IN): 12.44
Outside Diameter (MM): 316
Overall Height (IN): 1.9
Overall Height (MM): 48.2
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

SUBARU (3)

LEGACY (2)

OUTBACK (2)

WRX (1)

OE号码

品牌	号码
OE	AX90184*
