DURAGO
BR901840

第三方数据DURAGO : BR901840

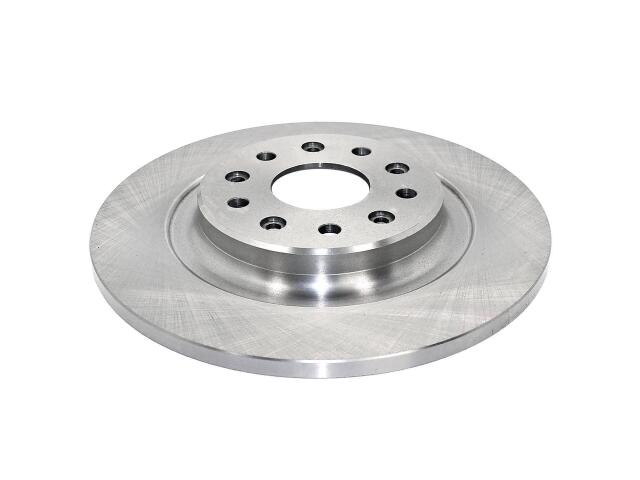

Rotor
DURAGO : BR901840

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.86
Center Hole Diameter (MM): 72.6
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.39
Discard Thickness (MM): 10
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5
Mounting Bolt Hole Circle Diameter (MM): 127
Mounting Bolt Hole Diameter (IN): 0.57
Mounting Bolt Hole Diameter (MM): 14.5
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 12
Outside Diameter (IN): 13.35
Outside Diameter (MM): 339
Overall Height (IN): 1.38
Overall Height (MM): 35
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

CHRYSLER (1)

OE号码

品牌	号码
OE	AX90184*
