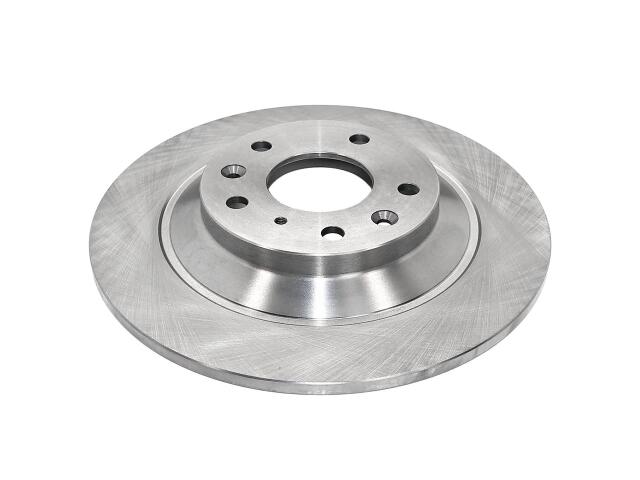

Rotor
DURAGO : BR901814

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.68
Center Hole Diameter (MM): 68
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.31
Discard Thickness (MM): 8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.52
Mounting Bolt Hole Diameter (MM): 13.1
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10
Outside Diameter (IN): 11.92
Outside Diameter (MM): 302.7
Overall Height (IN): 1.56
Overall Height (MM): 39.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	AX90181*
