DURAGO
BR901784

第三方数据DURAGO : BR901784

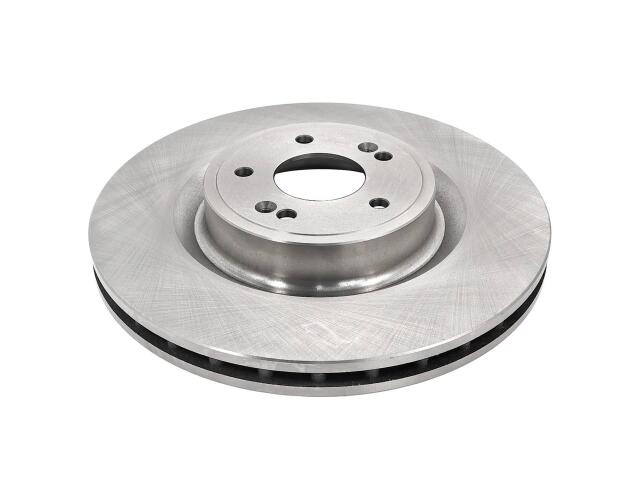

Rotor
DURAGO : BR901784

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.72
Center Hole Diameter (MM): 69
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.1
Discard Thickness (MM): 28
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.5
Mounting Bolt Hole Diameter (MM): 12.6
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 30
Outside Diameter (IN): 13.78
Outside Diameter (MM): 350
Overall Height (IN): 2.22
Overall Height (MM): 56.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

KIA (1)

GENESIS (1)

OE号码

品牌	号码
OE	AX90178*
