DURAGO
BR90177802

第三方数据DURAGO : BR90177802

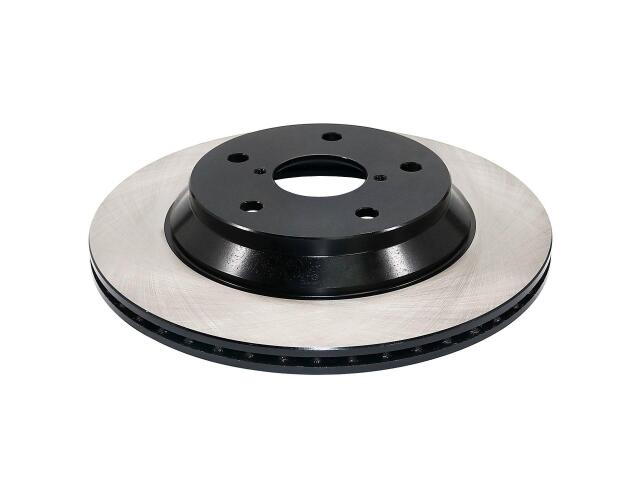

Rotor
DURAGO : BR90177802

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.28
Center Hole Diameter (MM): 58
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.59
Discard Thickness (MM): 15
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.51
Mounting Bolt Hole Diameter (MM): 13
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.67
Nominal Thickness (MM): 17
Outside Diameter (IN): 11.22
Outside Diameter (MM): 285
Overall Height (IN): 1.82
Overall Height (MM): 46.3
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

SUBARU (3)

OE号码

品牌	号码
OE	BR901778-0*
