DURAGO
BR901772

第三方数据DURAGO : BR901772

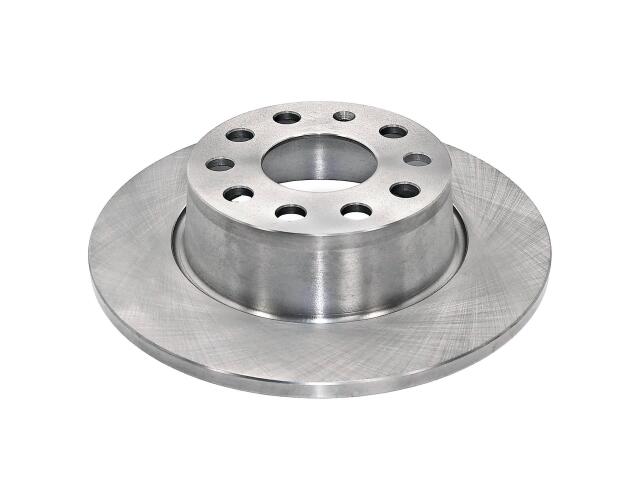

Rotor
DURAGO : BR901772

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.56
Center Hole Diameter (MM): 65
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.31
Discard Thickness (MM): 8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.41
Mounting Bolt Hole Circle Diameter (MM): 112
Mounting Bolt Hole Diameter (IN): 0.6
Mounting Bolt Hole Diameter (MM): 15.2
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10
Outside Diameter (IN): 10.71
Outside Diameter (MM): 272
Overall Height (IN): 2.29
Overall Height (MM): 58.2
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

VOLKSWAGEN (2)

JETTA (3)

TAOS (2)

OE号码

品牌	号码
OE	AX90177*
