DURAGO
BR901770

第三方数据DURAGO : BR901770

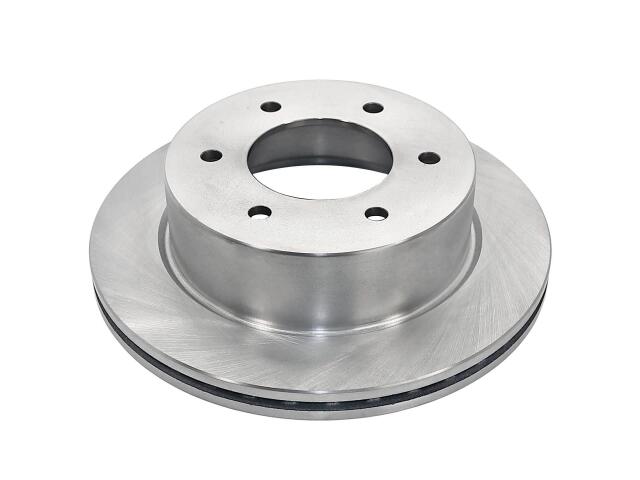

Rotor
DURAGO : BR901770

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.66
Center Hole Diameter (MM): 93
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.87
Discard Thickness (MM): 22
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.5
Mounting Bolt Hole Circle Diameter (MM): 139.7
Mounting Bolt Hole Diameter (IN): 0.52
Mounting Bolt Hole Diameter (MM): 13.3
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 0.94
Nominal Thickness (MM): 24
Outside Diameter (IN): 12.13
Outside Diameter (MM): 308
Overall Height (IN): 3.17
Overall Height (MM): 80.4
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (2)

RANGER (7)

BRONCO (3)

OE号码

品牌	号码
OE	AX90177*
