DURAGO
BR901766

第三方数据DURAGO : BR901766

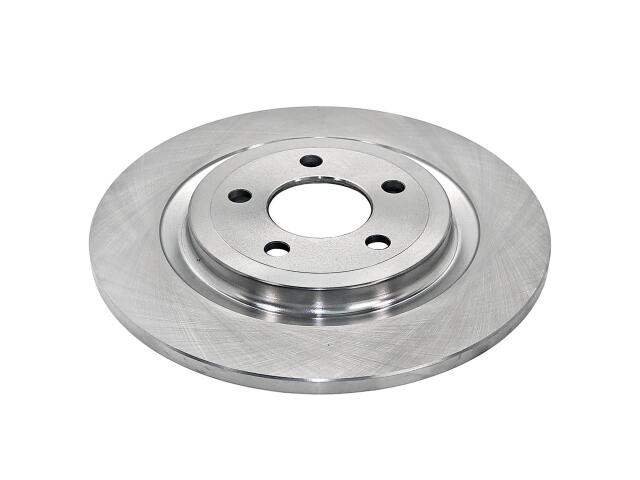

Rotor
DURAGO : BR901766

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.8
Center Hole Diameter (MM): 71
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.41
Discard Thickness (MM): 10.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.62
Mounting Bolt Hole Diameter (MM): 15.7
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 12
Outside Diameter (IN): 12.6
Outside Diameter (MM): 320
Overall Height (IN): 1.06
Overall Height (MM): 27
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

FORD (2)

OE号码

品牌	号码
OE	AX90176*
