第三方数据DURAGO : BR901744

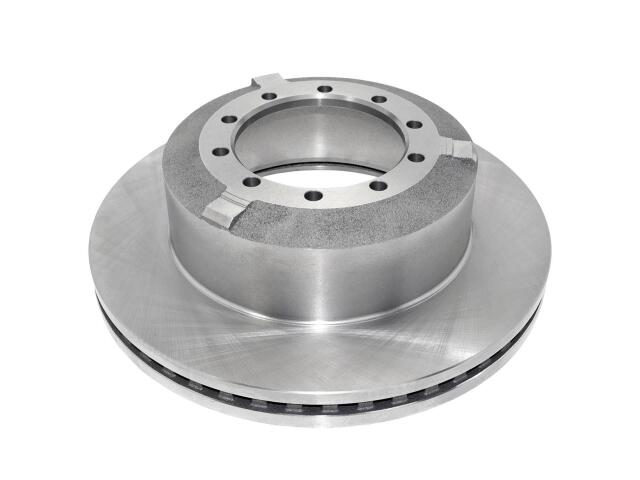

Rotor
DURAGO : BR901744

Abs Tone Ring Included: No
Center Hole Diameter (IN): 5.49
Center Hole Diameter (MM): 139.4
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.47
Discard Thickness (MM): 37.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 6.43
Mounting Bolt Hole Circle Diameter (MM): 163.2
Mounting Bolt Hole Diameter (IN): 0.51
Mounting Bolt Hole Diameter (MM): 13
Mounting Bolt Hole Quantity: 10
Nominal Thickness (IN): 1.54
Nominal Thickness (MM): 39
Outside Diameter (IN): 15.75
Outside Diameter (MM): 400
Overall Height (IN): 4.88
Overall Height (MM): 124
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (3)

F-450 SUPER DUTY (3)

F-550 SUPER DUTY (3)

F-600 SUPER DUTY (2)

OE号码

品牌	号码
OE	AX90174*
