DURAGO
BR901716

第三方数据DURAGO : BR901716

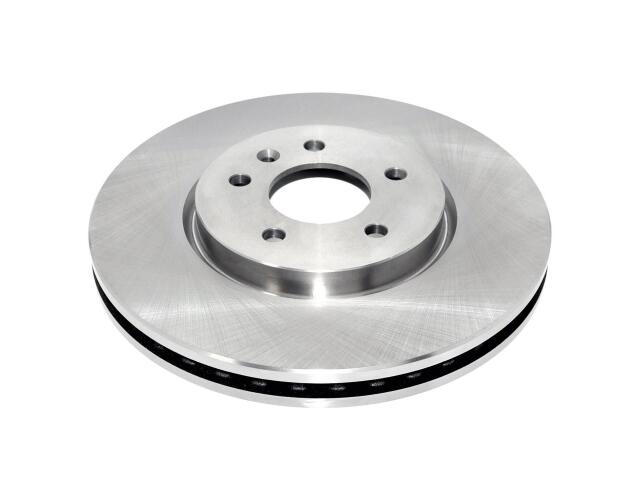

Rotor
DURAGO : BR901716

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.78
Center Hole Diameter (MM): 70.7
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.06
Discard Thickness (MM): 27
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.53
Mounting Bolt Hole Circle Diameter (MM): 115
Mounting Bolt Hole Diameter (IN): 0.56
Mounting Bolt Hole Diameter (MM): 14.2
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 30
Outside Diameter (IN): 12.64
Outside Diameter (MM): 321
Overall Height (IN): 1.8
Overall Height (MM): 45.6
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

BUICK (1)

OE号码

品牌	号码
OE	AX901716:*

品牌	号码
OE	901716G:*

品牌	号码
OE	AX90171*
