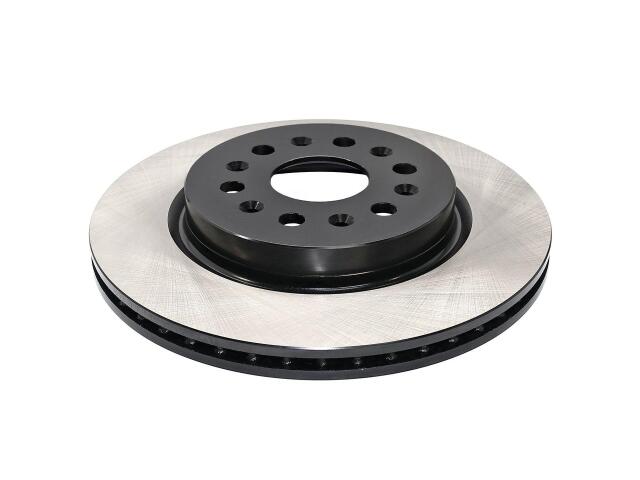

Rotor
DURAGO : BR90170002

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.66
Center Hole Diameter (MM): 67.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.79
Discard Thickness (MM): 20
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.63
Mounting Bolt Hole Diameter (MM): 16
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 0.91
Nominal Thickness (MM): 23
Outside Diameter (IN): 12.4
Outside Diameter (MM): 315
Overall Height (IN): 1.89
Overall Height (MM): 48
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

BUICK (1)

CADILLAC (2)

XT5 (2)

XT6 (2)

CHEVROLET (3)

BLAZER (3)

TRAVERSE (2)

EQUINOX (1)

GMC (1)

OE号码

品牌	号码
OE	BR901700-0*
