DURAGO
BR901694

第三方数据DURAGO : BR901694

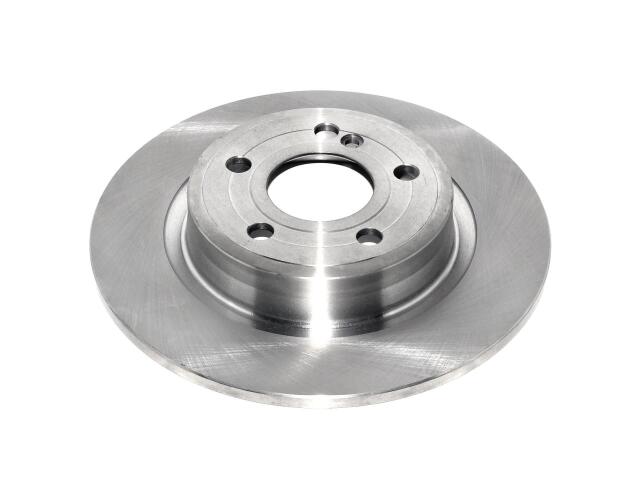

Rotor
DURAGO : BR901694

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.64
Center Hole Diameter (MM): 67
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.33
Discard Thickness (MM): 8.3
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.41
Mounting Bolt Hole Circle Diameter (MM): 112
Mounting Bolt Hole Diameter (IN): 0.6
Mounting Bolt Hole Diameter (MM): 15.3
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10
Outside Diameter (IN): 11.61
Outside Diameter (MM): 295
Overall Height (IN): 1.67
Overall Height (MM): 42.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

INFINITI (1)

MERCEDES-BENZ (5)

B250 (1)

CLA250 (1)

GLA250 (1)

B ELECTRIC DRIVE (1)

B250E (1)

OE号码

品牌	号码
OE	AX901694:*

品牌	号码
OE	AX90169*
