DURAGO
BR901686

第三方数据DURAGO : BR901686

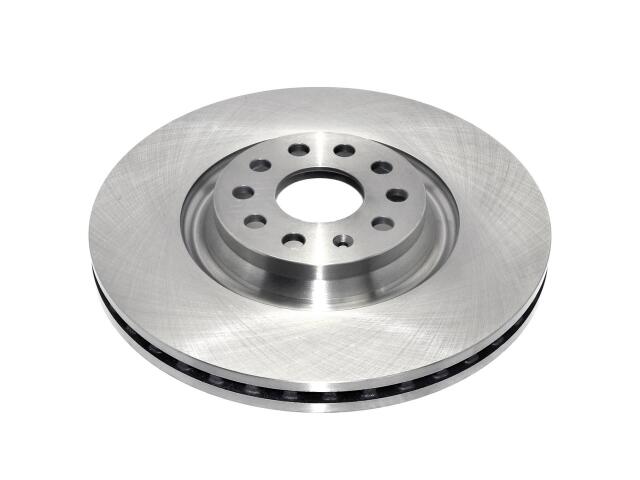

Rotor
DURAGO : BR901686

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.56
Center Hole Diameter (MM): 65
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.06
Discard Thickness (MM): 27
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.41
Mounting Bolt Hole Circle Diameter (MM): 112
Mounting Bolt Hole Diameter (IN): 0.6
Mounting Bolt Hole Diameter (MM): 15.3
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 30
Outside Diameter (IN): 13.39
Outside Diameter (MM): 340
Overall Height (IN): 1.96
Overall Height (MM): 49.8
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

VOLKSWAGEN (6)

TIGUAN (2)

ARTEON (1)

GOLF (1)

GTI (1)

JETTA (1)

CC (1)

AUDI (3)

OE号码

品牌	号码
OE	AX90168*
