DURAGO
BR901664

第三方数据DURAGO : BR901664

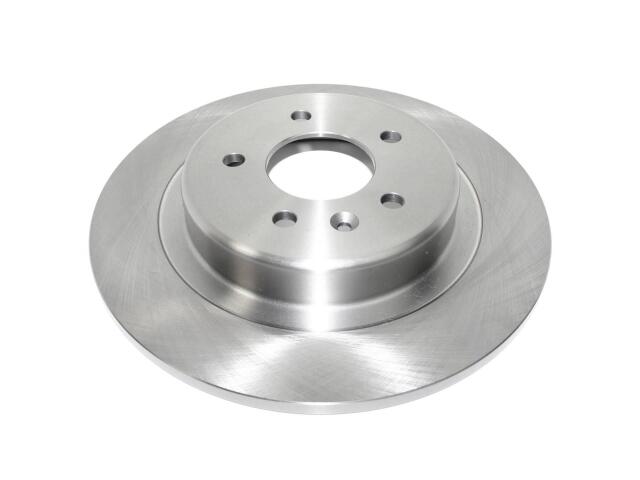

Rotor
DURAGO : BR901664

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.79
Center Hole Diameter (MM): 70.8
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.39
Discard Thickness (MM): 10
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.53
Mounting Bolt Hole Circle Diameter (MM): 115
Mounting Bolt Hole Diameter (IN): 0.55
Mounting Bolt Hole Diameter (MM): 14
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.47
Nominal Thickness (MM): 12
Outside Diameter (IN): 12.4
Outside Diameter (MM): 315
Overall Height (IN): 1.77
Overall Height (MM): 45
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

BUICK (1)

OE号码

品牌	号码
OE	AX901664:*

品牌	号码
OE	AX90166*

品牌	号码
OE	1350624*
