第三方数据DURAGO : BR901652

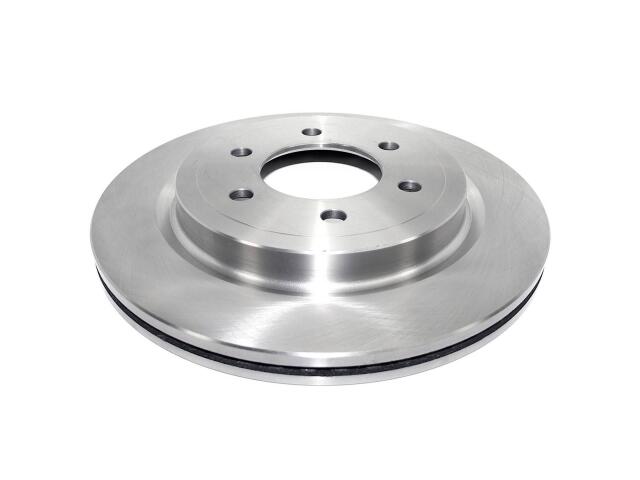

Rotor
DURAGO : BR901652

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.54
Center Hole Diameter (MM): 90
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.89
Discard Thickness (MM): 22.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.31
Mounting Bolt Hole Circle Diameter (MM): 135
Mounting Bolt Hole Diameter (IN): 0.62
Mounting Bolt Hole Diameter (MM): 15.7
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 0.94
Nominal Thickness (MM): 24
Outside Diameter (IN): 13.23
Outside Diameter (MM): 336
Overall Height (IN): 1.78
Overall Height (MM): 45.2
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (3)

F-150 (5)

EXPEDITION (1)

LOBO (2)

LINCOLN (1)

OE号码

品牌	号码
OE	AX90165*

品牌	号码
OE	JL3Z2C026*
