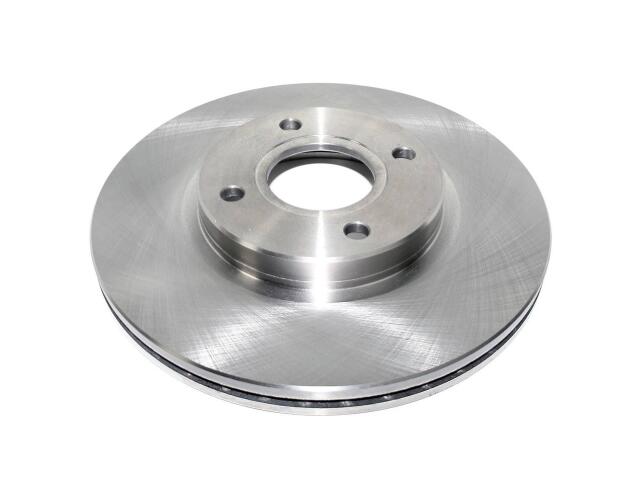

Rotor
DURAGO : BR901638

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.5
Center Hole Diameter (MM): 63.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.83
Discard Thickness (MM): 21
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.25
Mounting Bolt Hole Circle Diameter (MM): 108
Mounting Bolt Hole Diameter (IN): 0.51
Mounting Bolt Hole Diameter (MM): 13
Mounting Bolt Hole Quantity: 4
Nominal Thickness (IN): 0.91
Nominal Thickness (MM): 23
Outside Diameter (IN): 10.94
Outside Diameter (MM): 278
Overall Height (IN): 1.72
Overall Height (MM): 43.6
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

OE号码

品牌	号码
OE	AX90163*

品牌	号码
OE	AY1Z1125*
