DURAGO
BR901594

第三方数据DURAGO : BR901594

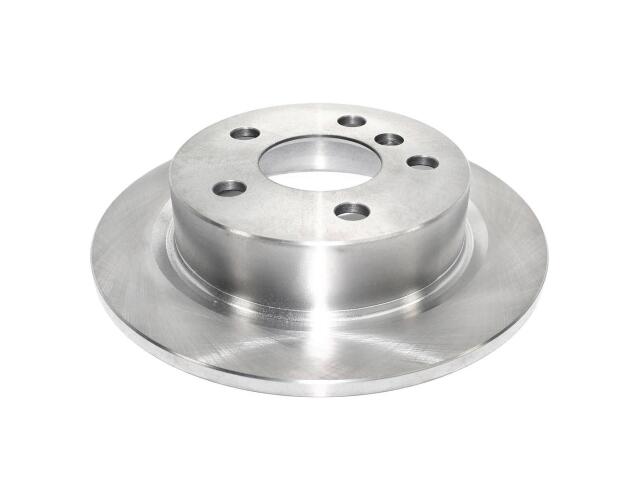

Rotor
DURAGO : BR901594

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.64
Center Hole Diameter (MM): 67
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.33
Discard Thickness (MM): 8.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.41
Mounting Bolt Hole Circle Diameter (MM): 112
Mounting Bolt Hole Diameter (IN): 0.65
Mounting Bolt Hole Diameter (MM): 16.6
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10
Outside Diameter (IN): 10.2
Outside Diameter (MM): 259
Overall Height (IN): 1.99
Overall Height (MM): 50.6
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

MINI (1)

COOPER (4)

1.5L L3 Turbocharged (11)

1.6L L4 (1)

1.6L L4 Turbocharged (1)

2.0L L4 Turbocharged (11)

OE号码

品牌	号码
OE	901594*

品牌	号码
OE	AX90159*

品牌	号码
OE	3421679938*
