DURAGO
BR901576

第三方数据DURAGO : BR901576

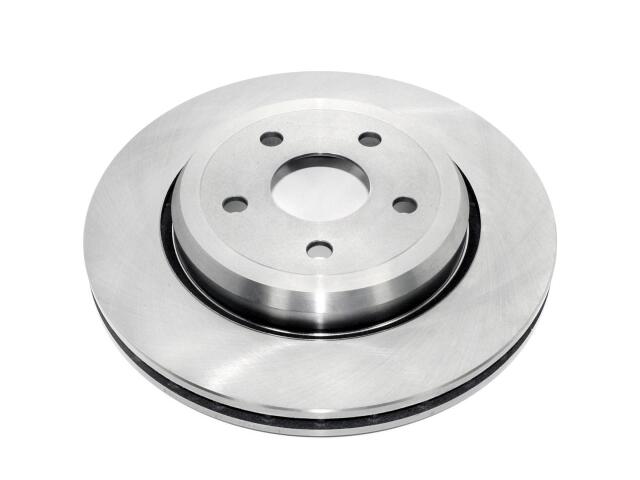

Rotor
DURAGO : BR901576

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.83
Center Hole Diameter (MM): 72
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.02
Discard Thickness (MM): 26
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5
Mounting Bolt Hole Circle Diameter (MM): 127
Mounting Bolt Hole Diameter (IN): 0.67
Mounting Bolt Hole Diameter (MM): 17.1
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.1
Nominal Thickness (MM): 28
Outside Diameter (IN): 13.78
Outside Diameter (MM): 350
Overall Height (IN): 2.5
Overall Height (MM): 63.4
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

JEEP (1)

DODGE (1)

OE号码

品牌	号码
OE	AX901576:*
OE	43182*

品牌	号码
OE	43182G:*
OE	AX90157*

品牌	号码
OE	5181512A*
OE	5181512A*
