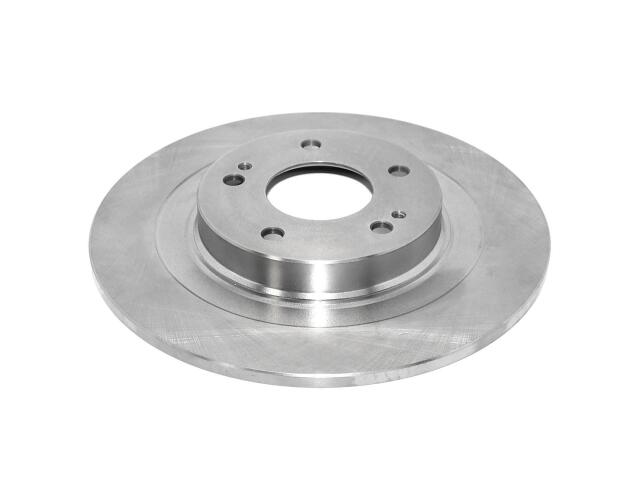

Rotor
DURAGO : BR901520

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.72
Center Hole Diameter (MM): 69
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.33
Discard Thickness (MM): 8.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.49
Mounting Bolt Hole Diameter (MM): 12.5
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10
Outside Diameter (IN): 11.89
Outside Diameter (MM): 302
Overall Height (IN): 1.44
Overall Height (MM): 36.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

MITSUBISHI (4)

ECLIPSE CROSS (1)

OUTLANDER SPORT (2)

2.0L L4 (12)

2.4L L4 (10)

RVR (2)

2.0L L4 (12)

2.4L L4 (10)

OUTLANDER (6)

2.0L L4 ELECTRIC/GAS (4)

2.4L L4 (6)

2.4L L4 DOHC (1)

2.4L L4 ELECTRIC/GAS (2)

2.4L L4 SOHC (1)

3.0L V6 (7)

OE号码

品牌	号码
OE	AX90152*

品牌	号码
OE	4615A12*

品牌	号码
OE	4615A16*
