DURAGO
BR901416

第三方数据DURAGO : BR901416

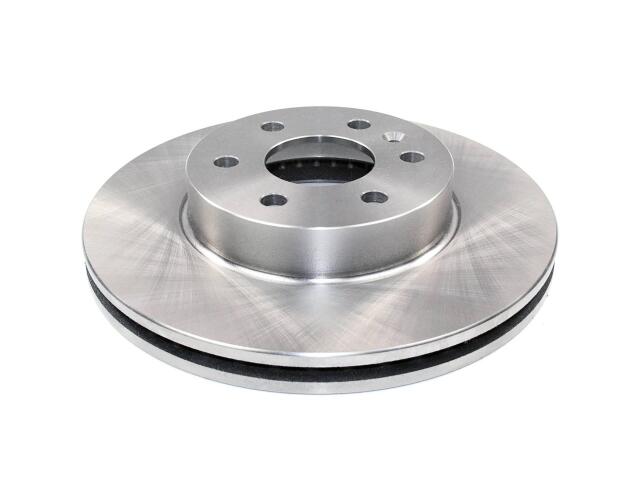

Rotor
DURAGO : BR901416

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.8
Center Hole Diameter (MM): 71
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.98
Discard Thickness (MM): 25
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.62
Mounting Bolt Hole Diameter (MM): 15.8
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 1.06
Nominal Thickness (MM): 27
Outside Diameter (IN): 12.2
Outside Diameter (MM): 310
Overall Height (IN): 2.4
Overall Height (MM): 61
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	AX90141*

品牌	号码
OE	9477572*
