DURAGO
BR901414

第三方数据DURAGO : BR901414

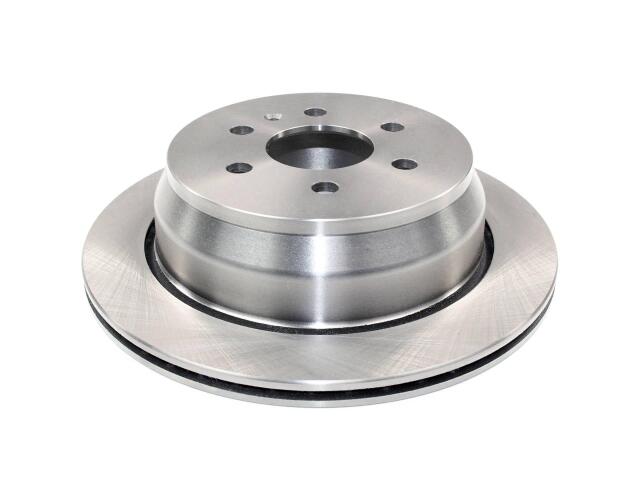

Rotor
DURAGO : BR901414

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.8
Center Hole Diameter (MM): 71
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.63
Discard Thickness (MM): 16
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.63
Mounting Bolt Hole Diameter (MM): 15.9
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 0.71
Nominal Thickness (MM): 18
Outside Diameter (IN): 12.76
Outside Diameter (MM): 324
Overall Height (IN): 3.15
Overall Height (MM): 80
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	AX90141*

品牌	号码
OE	2338717*

品牌	号码
OE	9477864*
