DURAGO
BR901412

第三方数据DURAGO : BR901412

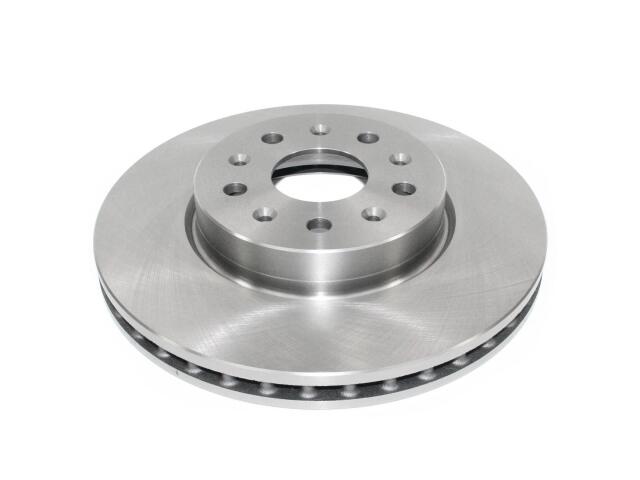

Rotor
DURAGO : BR901412

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.66
Center Hole Diameter (MM): 67.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.06
Discard Thickness (MM): 27
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.63
Mounting Bolt Hole Diameter (MM): 15.9
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 30
Outside Diameter (IN): 12.64
Outside Diameter (MM): 321
Overall Height (IN): 2.4
Overall Height (MM): 61
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

CADILLAC (1)

CHEVROLET (1)

CAMARO (3)

2.0L L4 Turbocharged (8)

3.6L V6 (8)

6.2L V8 (4)

OE号码

品牌	号码
OE	90141*

品牌	号码
OE	AX90141*

品牌	号码
OE	1357807*
