DURAGO
BR901404

第三方数据DURAGO : BR901404

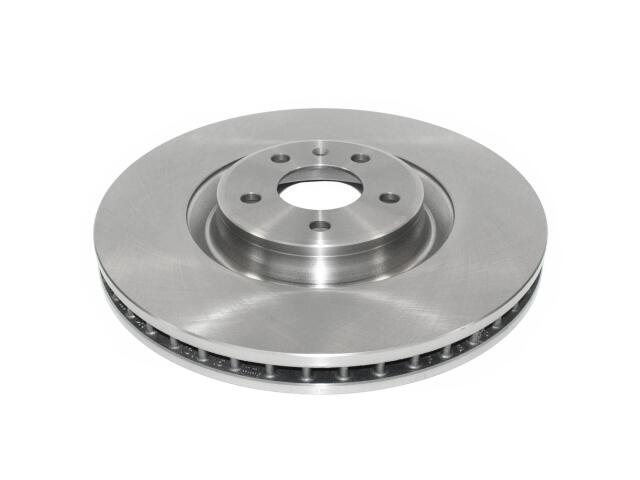

Rotor
DURAGO : BR901404

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.68
Center Hole Diameter (MM): 68
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.24
Discard Thickness (MM): 31.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.41
Mounting Bolt Hole Circle Diameter (MM): 112
Mounting Bolt Hole Diameter (IN): 0.6
Mounting Bolt Hole Diameter (MM): 15.3
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.34
Nominal Thickness (MM): 34
Outside Diameter (IN): 14
Outside Diameter (MM): 355.7
Overall Height (IN): 2.05
Overall Height (MM): 52.1
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

AUDI (2)

A6 (4)

A7 (3)

OE号码

品牌	号码
OE	90140*
OE	AX90140*

品牌	号码
OE	4G0615301*
OE	4G0615301*

品牌	号码
OE	4G0615301*
