DURAGO
BR901382

第三方数据DURAGO : BR901382

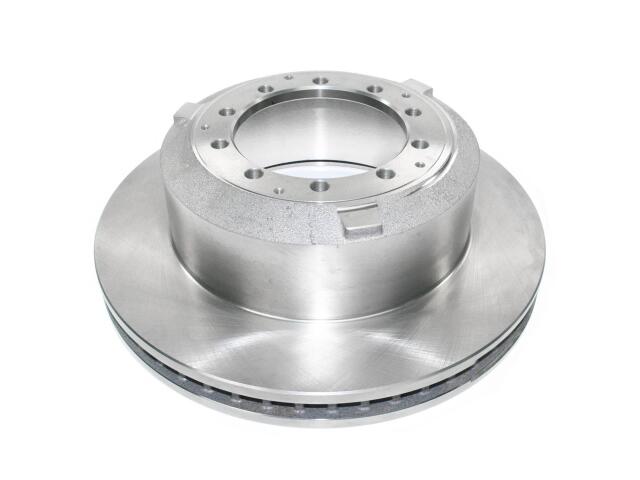

Rotor
DURAGO : BR901382

Abs Tone Ring Included: No
Center Hole Diameter (IN): 5.49
Center Hole Diameter (MM): 139.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.47
Discard Thickness (MM): 37.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 6.42
Mounting Bolt Hole Circle Diameter (MM): 163
Mounting Bolt Hole Diameter (IN): 0.51
Mounting Bolt Hole Diameter (MM): 13
Mounting Bolt Hole Quantity: 10
Nominal Thickness (IN): 1.54
Nominal Thickness (MM): 39
Outside Diameter (IN): 15.35
Outside Diameter (MM): 390
Overall Height (IN): 4.89
Overall Height (MM): 124.2
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

RAM (2)

4500 (2)

6.4L V8 (11)

6.7L L6 DIESEL Turbocharged (12)

5500 (2)

6.4L V8 (11)

6.7L L6 DIESEL Turbocharged (12)

OE号码

品牌	号码
OE	90138*

品牌	号码
OE	AX90138*

品牌	号码
OE	68174125A*
