DURAGO
BR901378

第三方数据DURAGO : BR901378

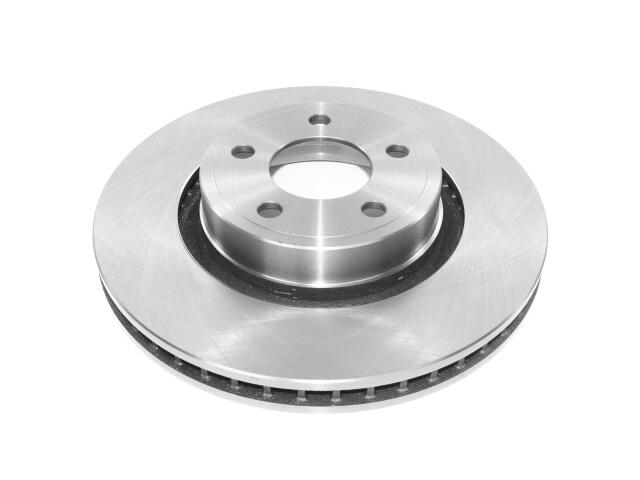

Rotor
DURAGO : BR901378

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.8
Center Hole Diameter (MM): 71
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.12
Discard Thickness (MM): 28.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.62
Mounting Bolt Hole Diameter (MM): 15.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 30
Outside Diameter (IN): 12.6
Outside Diameter (MM): 320
Overall Height (IN): 2.44
Overall Height (MM): 62
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

OE号码

品牌	号码
OE	90137*
OE	AX90137*

品牌	号码
OE	FR3Z1125*
OE	GR3Z1125*

品牌	号码
OE	GR3Z1125*
