DURAGO
BR901376

第三方数据DURAGO : BR901376

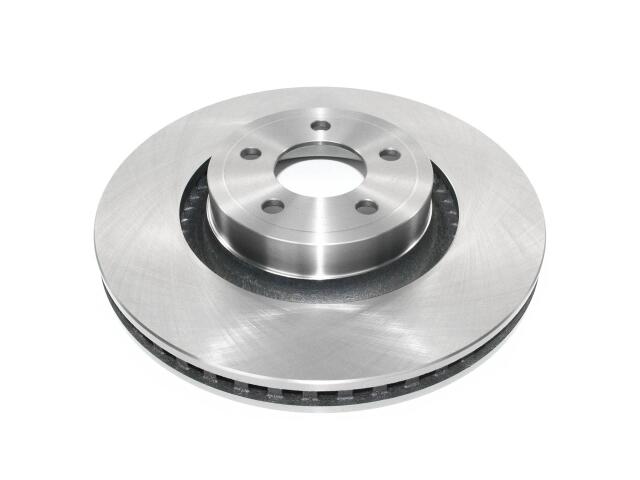

Rotor
DURAGO : BR901376

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.8
Center Hole Diameter (MM): 71
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.2
Discard Thickness (MM): 30.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.62
Mounting Bolt Hole Diameter (MM): 15.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.26
Nominal Thickness (MM): 32
Outside Diameter (IN): 13.86
Outside Diameter (MM): 352
Overall Height (IN): 2.52
Overall Height (MM): 64
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

MUSTANG (2)

2.3L L4 Turbocharged (9)

5.0L V8 (9)

OE号码

品牌	号码
OE	AX90137*
OE	901376G:*

品牌	号码
OE	90137*
OE	FR3Z1125*

品牌	号码
OE	GR3Z1125*
OE	GR3Z1125*
