DURAGO
BR901374

第三方数据DURAGO : BR901374

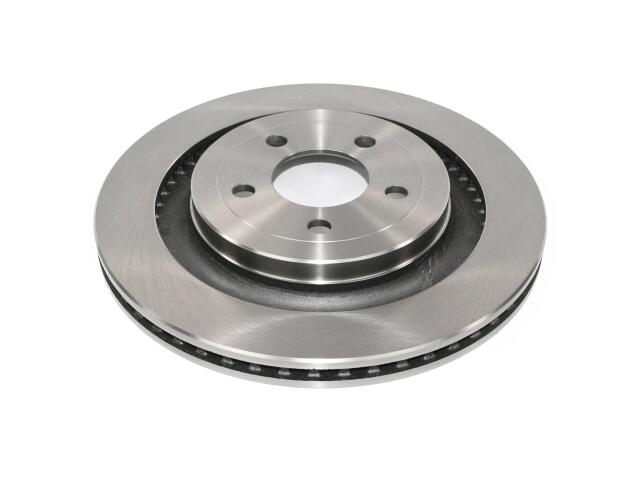

Rotor
DURAGO : BR901374

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.8
Center Hole Diameter (MM): 71
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.93
Discard Thickness (MM): 23.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.62
Mounting Bolt Hole Diameter (MM): 15.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.98
Nominal Thickness (MM): 25
Outside Diameter (IN): 12.99
Outside Diameter (MM): 330
Overall Height (IN): 1.71
Overall Height (MM): 43.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (1)

MUSTANG (2)

2.3L L4 Turbocharged (9)

5.0L V8 (9)

OE号码

品牌	号码
OE	90137*
OE	AX90137*

品牌	号码
OE	FR3Z2C026*

品牌	号码
OE	GR3Z2C026*
