DURAGO
BR901328

第三方数据DURAGO : BR901328

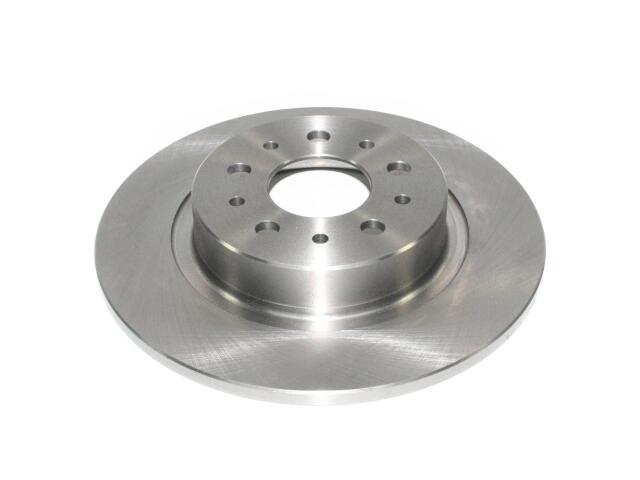

Rotor
DURAGO : BR901328

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.32
Center Hole Diameter (MM): 59
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.31
Discard Thickness (MM): 8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.86
Mounting Bolt Hole Circle Diameter (MM): 98
Mounting Bolt Hole Diameter (IN): 0.51
Mounting Bolt Hole Diameter (MM): 13
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10
Outside Diameter (IN): 10.39
Outside Diameter (MM): 264
Overall Height (IN): 1.59
Overall Height (MM): 40.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

FIAT (1)

OE号码

品牌	号码
OE	901328:*
OE	AX901328:*

品牌	号码
OE	AX90132*
OE	90132*

品牌	号码
OE	68201271A*
