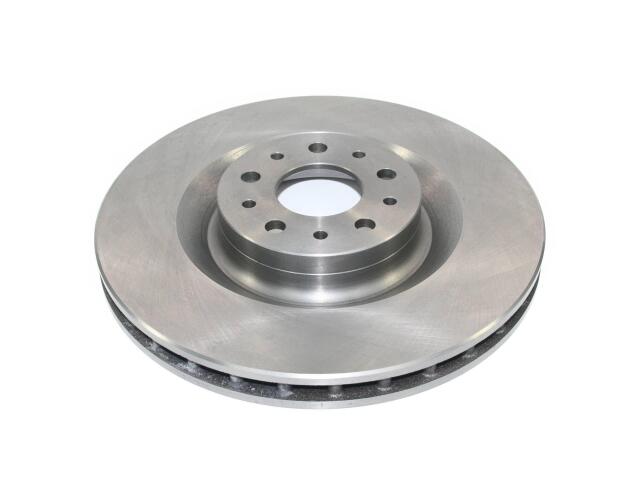

Rotor
DURAGO : BR901326

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.32
Center Hole Diameter (MM): 59
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1
Discard Thickness (MM): 25.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.86
Mounting Bolt Hole Circle Diameter (MM): 98
Mounting Bolt Hole Diameter (IN): 0.51
Mounting Bolt Hole Diameter (MM): 13
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.1
Nominal Thickness (MM): 28
Outside Diameter (IN): 12.01
Outside Diameter (MM): 305
Overall Height (IN): 1.8
Overall Height (MM): 45.8
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FIAT (1)

OE号码

品牌	号码
OE	45637G:*
OE	AX901326:*

品牌	号码
OE	90132*
OE	AX90132*

品牌	号码
OE	68201086A*
