DURAGO
BR901324

第三方数据DURAGO : BR901324

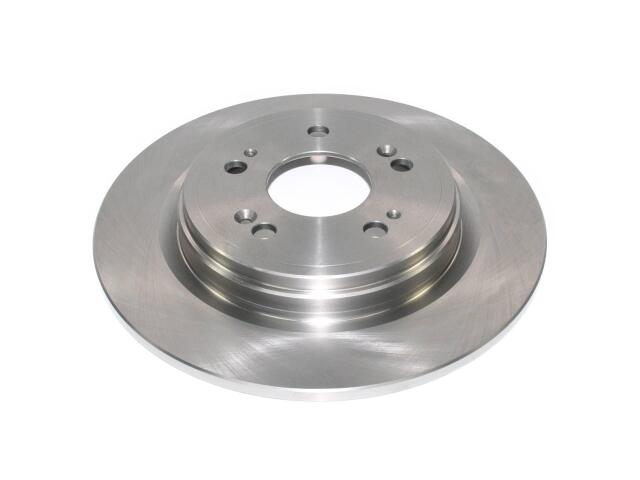

Rotor
DURAGO : BR901324

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.76
Center Hole Diameter (MM): 70.2
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.31
Discard Thickness (MM): 8
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.57
Mounting Bolt Hole Diameter (MM): 14.6
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10
Outside Diameter (IN): 12.19
Outside Diameter (MM): 309.6
Overall Height (IN): 1.52
Overall Height (MM): 38.7
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

ACURA (1)

OE号码

品牌	号码
OE	AX901324:*
OE	AX90132*
OE	45696G:*

品牌	号码
OE	45696*
OE	90132*

品牌	号码
OE	42510TY2A0*
OE	42510TY2A0*
