DURAGO
BR901322

第三方数据DURAGO : BR901322

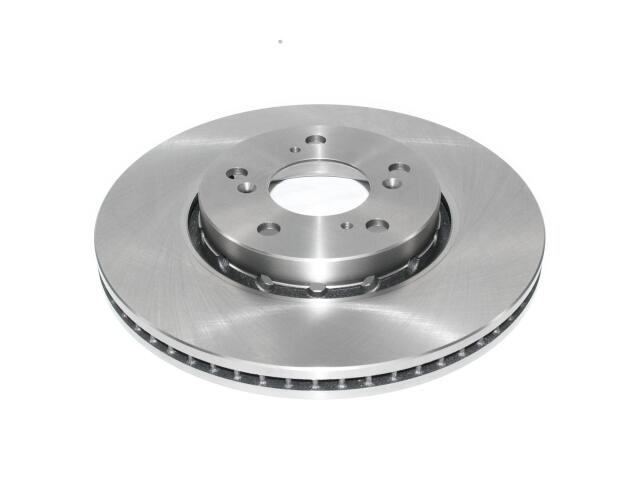

Rotor
DURAGO : BR901322

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.76
Center Hole Diameter (MM): 70.2
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.91
Discard Thickness (MM): 23
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.57
Mounting Bolt Hole Diameter (MM): 14.6
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.98
Nominal Thickness (MM): 25
Outside Diameter (IN): 12.28
Outside Diameter (MM): 312
Overall Height (IN): 1.86
Overall Height (MM): 47.2
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

ACURA (1)

OE号码

品牌	号码
OE	AX90132*
OE	AX901322:*

品牌	号码
OE	90132*
OE	45251TY2A0*

品牌	号码
OE	45251TY2A0*
