DURAGO
BR90132001

第三方数据DURAGO : BR90132001

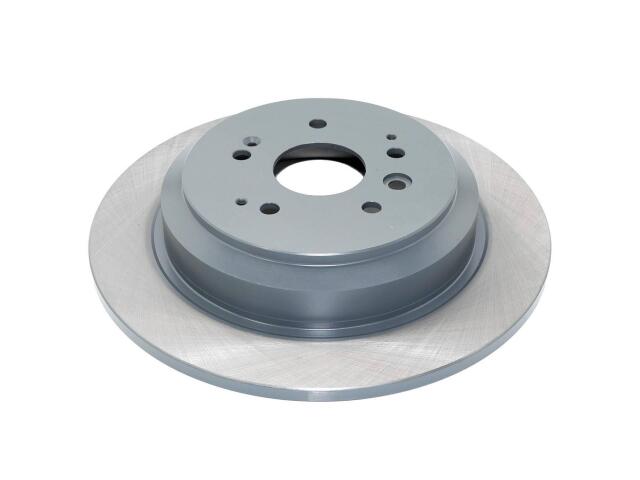

Rotor
DURAGO : BR90132001

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.52
Center Hole Diameter (MM): 64.1
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.35
Discard Thickness (MM): 9
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.5
Mounting Bolt Hole Circle Diameter (MM): 114.3
Mounting Bolt Hole Diameter (IN): 0.5
Mounting Bolt Hole Diameter (MM): 12.7
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.43
Nominal Thickness (MM): 11
Outside Diameter (IN): 12.99
Outside Diameter (MM): 330
Overall Height (IN): 2.49
Overall Height (MM): 63.3
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

ACURA (1)

OE号码

品牌	号码
OE	BR901320-0*

品牌	号码
OE	AX901320*
