DURAGO
BR901166

第三方数据DURAGO : BR901166

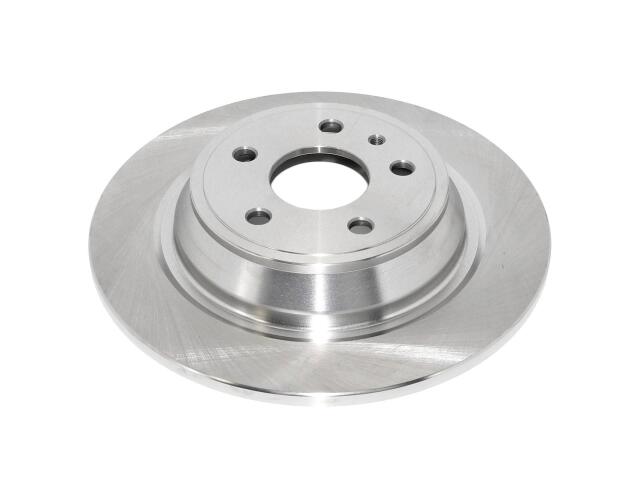

Rotor
DURAGO : BR901166

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.5
Center Hole Diameter (MM): 63.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.37
Discard Thickness (MM): 9.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.25
Mounting Bolt Hole Circle Diameter (MM): 108
Mounting Bolt Hole Diameter (IN): 0.54
Mounting Bolt Hole Diameter (MM): 13.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.43
Nominal Thickness (MM): 11
Outside Diameter (IN): 11.89
Outside Diameter (MM): 302
Overall Height (IN): 2.01
Overall Height (MM): 51
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

FORD (1)

FUSION (5)

1.5L L4 Turbocharged (7)

1.6L L4 Turbocharged (2)

2.0L L4 ELECTRIC/GAS (8)

2.0L L4 Turbocharged (8)

2.5L L4 (8)

LINCOLN (1)

OE号码

品牌	号码
OE	90116*

品牌	号码
OE	AX90116*

品牌	号码
OE	DG9Z2C026*
