DURAGO
BR901110

第三方数据DURAGO : BR901110

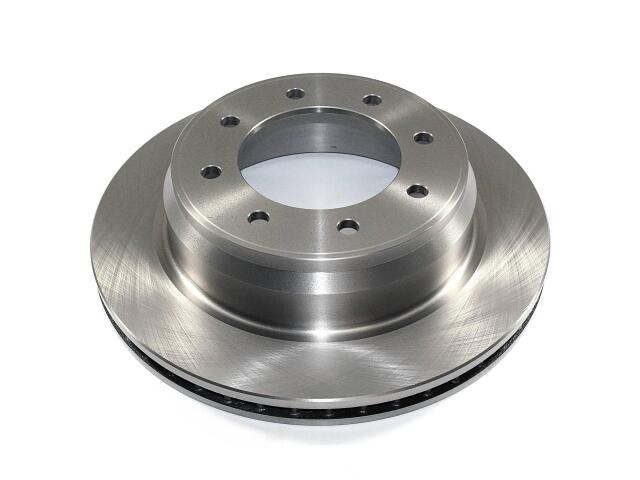

Rotor
DURAGO : BR901110

Abs Tone Ring Included: No
Center Hole Diameter (IN): 4.84
Center Hole Diameter (MM): 123
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.12
Discard Thickness (MM): 28.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 6.5
Mounting Bolt Hole Circle Diameter (MM): 165.1
Mounting Bolt Hole Diameter (IN): 0.57
Mounting Bolt Hole Diameter (MM): 14.5
Mounting Bolt Hole Quantity: 8
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 30
Outside Diameter (IN): 14.37
Outside Diameter (MM): 365
Overall Height (IN): 3.59
Overall Height (MM): 91.3
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

NISSAN (3)

NV1500 (1)

NV2500 (2)

NV3500 (2)

OE号码

品牌	号码
OE	90111*

品牌	号码
OE	AX90111*
