DURAGO
BR901072

第三方数据DURAGO : BR901072

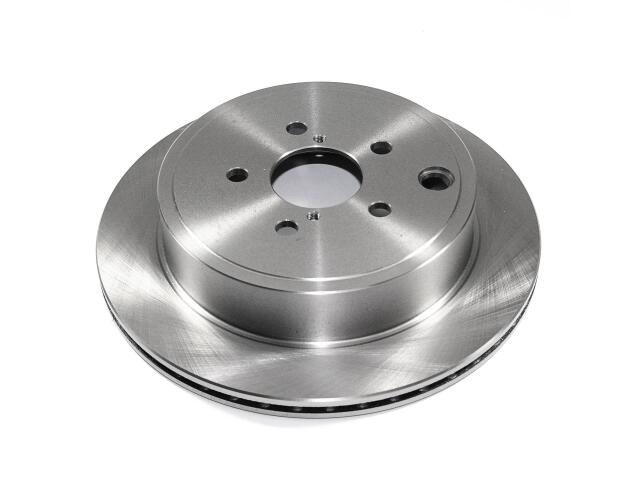

Rotor
DURAGO : BR901072

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.28
Center Hole Diameter (MM): 58
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.63
Discard Thickness (MM): 16
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 3.94
Mounting Bolt Hole Circle Diameter (MM): 100
Mounting Bolt Hole Diameter (IN): 13
Mounting Bolt Hole Diameter (MM): 13
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.71
Nominal Thickness (MM): 18
Outside Diameter (IN): 11.42
Outside Diameter (MM): 290
Overall Height (IN): 2.5
Overall Height (MM): 63.6
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

SUBARU (3)

BRZ (2)

LEGACY (2)

OUTBACK (1)

TOYOTA (2)

SCION (1)

OE号码

品牌	号码
OE	AX901072:*

品牌	号码
OE	AX90107*

品牌	号码
OE	90107*
