DURAGO
BR90106802

第三方数据DURAGO : BR90106802

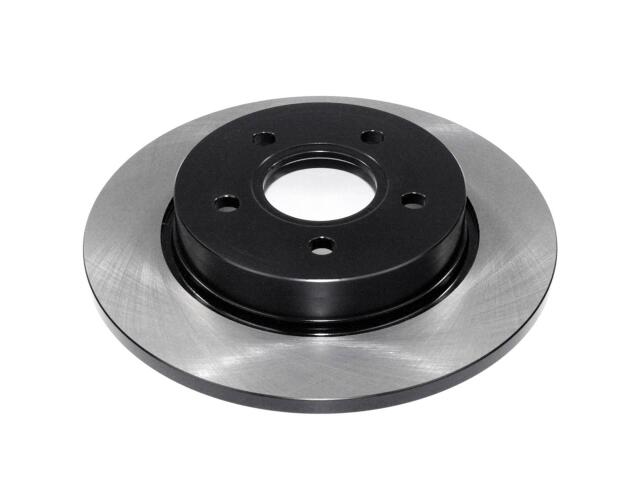

Rotor
DURAGO : BR90106802

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.5
Center Hole Diameter (MM): 63.6
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.35
Discard Thickness (MM): 9
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.25
Mounting Bolt Hole Circle Diameter (MM): 108
Mounting Bolt Hole Diameter (IN): 0.54
Mounting Bolt Hole Diameter (MM): 13.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.43
Nominal Thickness (MM): 11
Outside Diameter (IN): 10.67
Outside Diameter (MM): 271
Overall Height (IN): 1.61
Overall Height (MM): 41
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

FORD (1)

FOCUS (4)

2.0L L4 (7)

2.0L L4 Turbocharged (6)

999cc L3 Turbocharged (4)

ELECTRIC (6)

OE号码

品牌	号码
OE	BR901068-0*
