DURAGO
BR901066

第三方数据DURAGO : BR901066

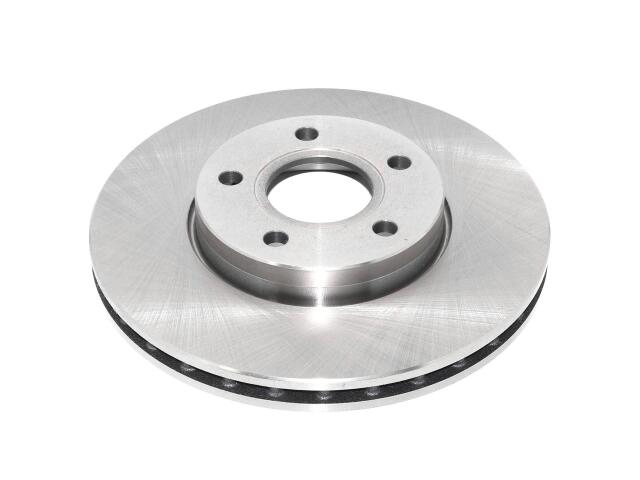

Rotor
DURAGO : BR901066

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.5
Center Hole Diameter (MM): 63.6
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.91
Discard Thickness (MM): 23
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.25
Mounting Bolt Hole Circle Diameter (MM): 108
Mounting Bolt Hole Diameter (IN): 0.54
Mounting Bolt Hole Diameter (MM): 13.8
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.99
Nominal Thickness (MM): 25.2
Outside Diameter (IN): 10.94
Outside Diameter (MM): 278
Overall Height (IN): 1.91
Overall Height (MM): 48.6
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (2)

FOCUS (3)

C-MAX (1)

VOLVO (4)

C30 (2)

S40 (3)

V50 (2)

C70 (1)

OE号码

品牌	号码
OE	90106*

品牌	号码
OE	AX90106*
