DURAGO
BR90104801

第三方数据DURAGO : BR90104801

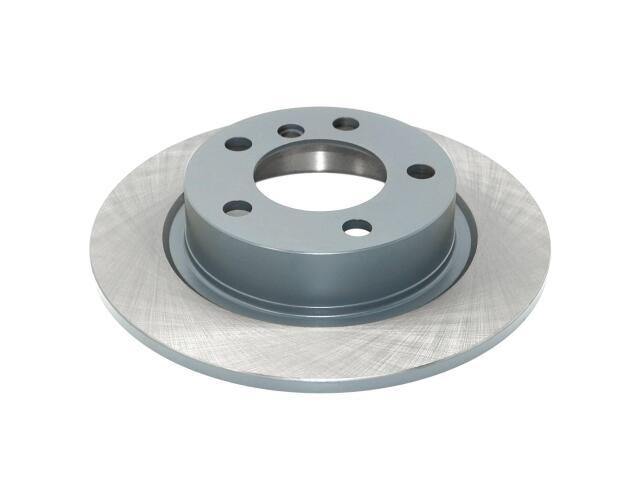

Rotor
DURAGO : BR90104801

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.11
Center Hole Diameter (MM): 79
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.33
Discard Thickness (MM): 8.4
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.65
Mounting Bolt Hole Diameter (MM): 16.6
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 0.39
Nominal Thickness (MM): 10
Outside Diameter (IN): 11.02
Outside Diameter (MM): 280
Overall Height (IN): 1.97
Overall Height (MM): 50
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Solid

适用车型

MINI (2)

COOPER COUNTRYMAN (2)

COOPER PACEMAN (2)

OE号码

品牌	号码
OE	BR901048-0*

品牌	号码
OE	AX901048*

品牌	号码
OE	AX901048P:*
