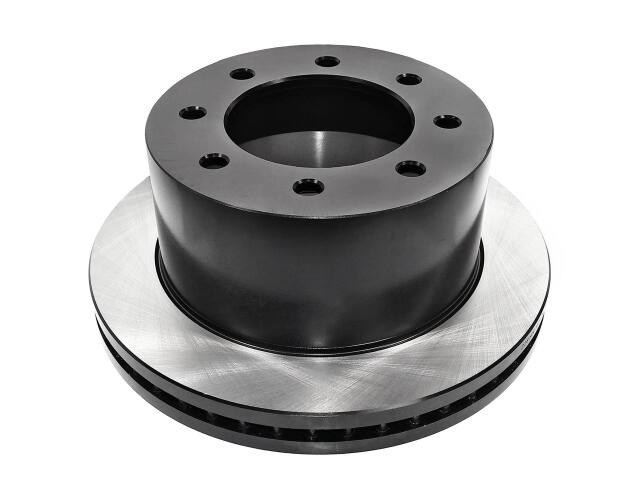

Rotor
DURAGO : BR90103002

Abs Tone Ring Included: No
Center Hole Diameter (IN): 5.12
Center Hole Diameter (MM): 130
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.5
Discard Thickness (MM): 38
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 7.09
Mounting Bolt Hole Circle Diameter (MM): 180
Mounting Bolt Hole Diameter (IN): 0.65
Mounting Bolt Hole Diameter (MM): 16.4
Mounting Bolt Hole Quantity: 8
Nominal Thickness (IN): 1.57
Nominal Thickness (MM): 40
Outside Diameter (IN): 13.98
Outside Diameter (MM): 355
Overall Height (IN): 5.91
Overall Height (MM): 150
Rust Resistant Coating: Yes
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

CHEVROLET (1)

GMC (1)

OE号码

品牌	号码
OE	BR901030-0*
