DURAGO
BR901022

第三方数据DURAGO : BR901022

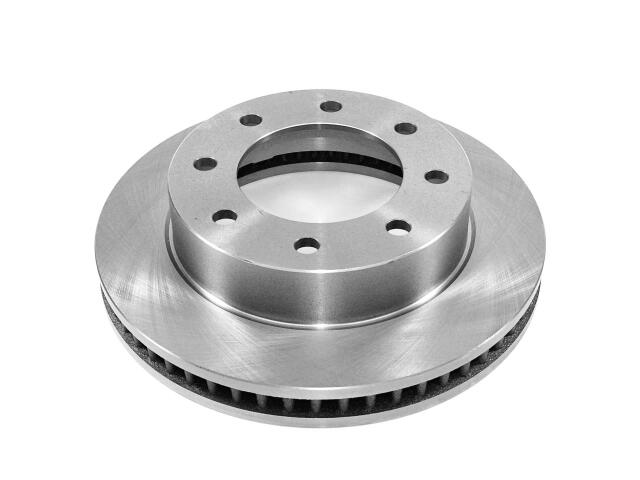

Rotor
DURAGO : BR901022

Abs Tone Ring Included: No
Center Hole Diameter (IN): 4.65
Center Hole Diameter (MM): 118
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.42
Discard Thickness (MM): 36
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 6.5
Mounting Bolt Hole Circle Diameter (MM): 165.1
Mounting Bolt Hole Diameter (IN): 0.64
Mounting Bolt Hole Diameter (MM): 16.2
Mounting Bolt Hole Quantity: 8
Nominal Thickness (IN): 1.5
Nominal Thickness (MM): 38
Outside Diameter (IN): 12.99
Outside Diameter (MM): 330
Overall Height (IN): 3.33
Overall Height (MM): 84.5
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

CADILLAC (1)

OE号码

品牌	号码
OE	41218G:*
OE	AX901022:*

品牌	号码
OE	AX90102*

品牌	号码
OE	90102*
