DURAGO
BR900944

第三方数据DURAGO : BR900944

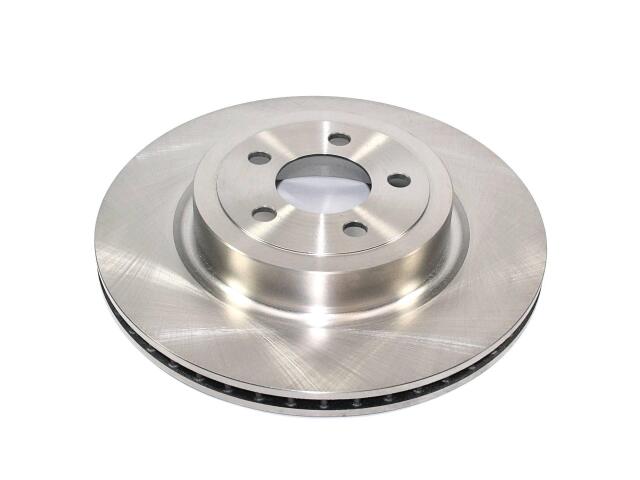

Rotor
DURAGO : BR900944

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.86
Center Hole Diameter (MM): 72.6
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.96
Discard Thickness (MM): 24.5
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.53
Mounting Bolt Hole Circle Diameter (MM): 115
Mounting Bolt Hole Diameter (IN): 0.66
Mounting Bolt Hole Diameter (MM): 16.7
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.02
Nominal Thickness (MM): 26
Outside Diameter (IN): 13.78
Outside Diameter (MM): 350
Overall Height (IN): 2.65
Overall Height (MM): 67.2
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

DODGE (2)

CHARGER (3)

3.5L V6 (4)

3.6L V6 (13)

5.7L V8 (17)

MAGNUM (1)

OE号码

品牌	号码
OE	AX90094*
OE	AX900944:*

品牌	号码
OE	43151G:*

品牌	号码
OE	90094*
