DURAGO
BR900914

第三方数据DURAGO : BR900914

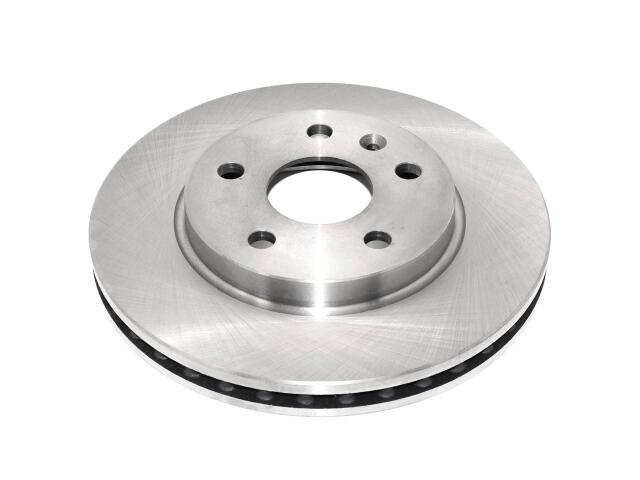

Rotor
DURAGO : BR900914

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.66
Center Hole Diameter (MM): 67.5
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.06
Discard Thickness (MM): 27
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.72
Mounting Bolt Hole Circle Diameter (MM): 120
Mounting Bolt Hole Diameter (IN): 0.64
Mounting Bolt Hole Diameter (MM): 16.3
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.18
Nominal Thickness (MM): 30
Outside Diameter (IN): 11.65
Outside Diameter (MM): 296
Overall Height (IN): 2.01
Overall Height (MM): 51
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

BUICK (3)

REGAL (2)

LACROSSE (2)

ALLURE (2)

CHEVROLET (2)

OE号码

品牌	号码
OE	90091*

品牌	号码
OE	AX90091*
