DURAGO
BR900846

第三方数据DURAGO : BR900846

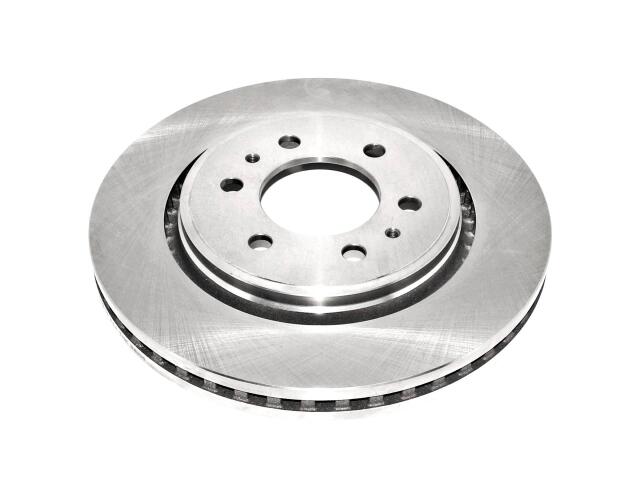

Rotor
DURAGO : BR900846

Abs Tone Ring Included: No
Center Hole Diameter (IN): 3.54
Center Hole Diameter (MM): 90
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.26
Discard Thickness (MM): 32
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 5.31
Mounting Bolt Hole Circle Diameter (MM): 135
Mounting Bolt Hole Diameter (IN): 0.64
Mounting Bolt Hole Diameter (MM): 16.3
Mounting Bolt Hole Quantity: 6
Nominal Thickness (IN): 1.34
Nominal Thickness (MM): 34
Outside Diameter (IN): 13.78
Outside Diameter (MM): 350
Overall Height (IN): 1.95
Overall Height (MM): 49.6
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

FORD (3)

F-150 (11)

2.7L V6 Turbocharged (6)

3.0L V6 DIESEL Turbocharged (3)

3.3L V6 (3)

3.5L V6 (3)

3.5L V6 Turbocharged (10)

3.7L V6 (4)

4.2L V6 (1)

4.6L V8 (1)

5.0L V8 (10)

5.4L V8 (1)

6.2L V8 (5)

EXPEDITION (2)

LOBO (5)

3.5L V6 Turbocharged (5)

4.6L V8 (1)

5.0L V8 (10)

5.4L V8 (1)

6.2L V8 (4)

LINCOLN (1)

OE号码

品牌	号码
OE	90084*

品牌	号码
OE	12643*

品牌	号码
OE	AX90084*
