DURAGO
BR900802

第三方数据DURAGO : BR900802

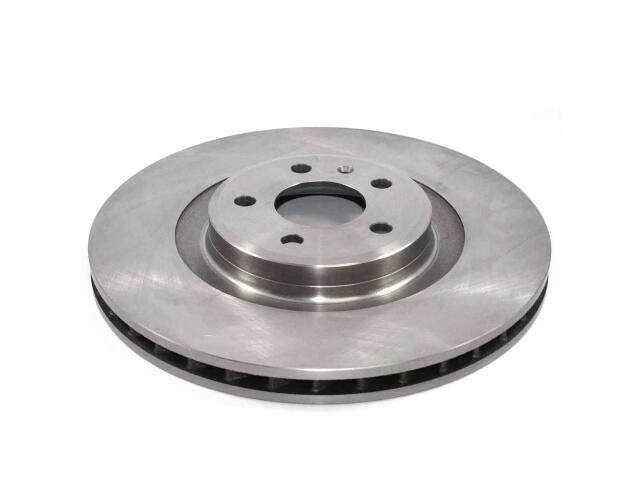

Rotor
DURAGO : BR900802

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.68
Center Hole Diameter (MM): 68
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Conventional
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 1.1
Discard Thickness (MM): 28
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.41
Mounting Bolt Hole Circle Diameter (MM): 112
Mounting Bolt Hole Diameter (IN): 0.61
Mounting Bolt Hole Diameter (MM): 15.5
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.16
Nominal Thickness (MM): 29.5
Outside Diameter (IN): 13.58
Outside Diameter (MM): 345
Overall Height (IN): 2.05
Overall Height (MM): 52.1
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

AUDI (2)

OE号码

品牌	号码
OE	AX900802:*
OE	45455G:*

品牌	号码
OE	90080*

品牌	号码
OE	AX90080*
