DURAGO
BR900772

第三方数据DURAGO : BR900772

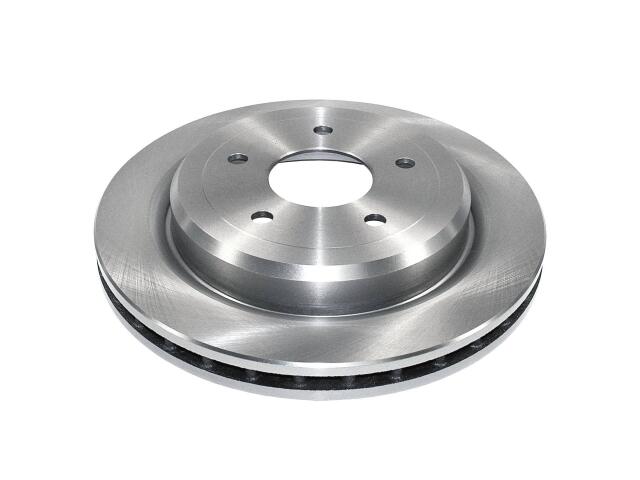

Rotor
DURAGO : BR900772

Abs Tone Ring Included: No
Center Hole Diameter (IN): 2.78
Center Hole Diameter (MM): 70.6
Construction: Full Cast
Conventional Or Drum-In-Hat Type Rotor: Drum-in-Hat
Cross Drilled: No
Directional or Non-Directional Brake Surface: Non-Directional
Discard Thickness (IN): 0.94
Discard Thickness (MM): 24
Material: Cast Iron
Mounting Bolt Hole Circle Diameter (IN): 4.75
Mounting Bolt Hole Circle Diameter (MM): 120.65
Mounting Bolt Hole Diameter (IN): 0.53
Mounting Bolt Hole Diameter (MM): 13.5
Mounting Bolt Hole Quantity: 5
Nominal Thickness (IN): 1.02
Nominal Thickness (MM): 26
Outside Diameter (IN): 12.01
Outside Diameter (MM): 305
Overall Height (IN): 1.93
Overall Height (MM): 49
Rust Resistant Coating: No
Slotted: No
Solid Or Vented Type Rotor: Vented

适用车型

CADILLAC (1)

CHEVROLET (1)

OE号码

品牌	号码
OE	AX90077*

品牌	号码
OE	90077*
